Project Description

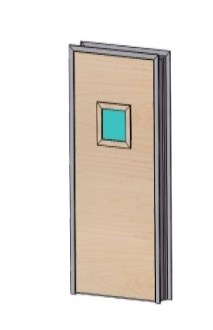

Bullet Resistant Wood Veneered Door and Hollow Metal Frame Assembly – View Lite

Description

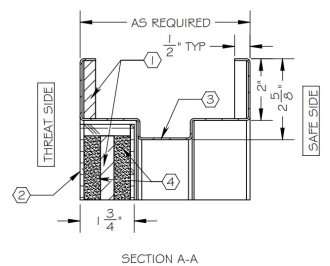

Bullet Resistant Wood Veneered door and hollow metal frame assemblies are designed for “non-ricochet type” intended to permit capture and retention of attacking projectile, lessening the potential of random injury or lateral penetration. The frame is built with cold rolled steel prime painted steel which is cut, then broken, and welded to size. Frames include armor installed in 2″ face to meet ballistic protection level. Our doors have fiberglass armor core with particle board and are veneer including door skins and edge molding. Ballistic level 1 thru 3 are 1 3/4″ thick and ballistic level 4 through 8 are 2″ + thick. Our wood door assembly leaves the factory swinging on its frame using heavy duty clear anodized aluminum continuous gear hinge prepped for cylinder, mortise lockset, or exit device.

SKU: DR-WD-VL-DB

Masterformat: 08 10 00

REQUEST A QUOTE

Key Stats

Ballistic Level (UL) 1 to 8

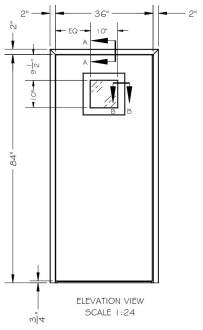

Height 84″ | 80″ to 108″
Thickness 1 3/4 ” | 2″
Width 36″ | 32″ to 48″
Application Interior
Core Material(s) Fiberglass Armor with Particle Board
Finish Primed
Frame Primary Material 16 Ga. Steel | 14 Ga. Steel (Upon Request) | 12 Ga. Steel (Upon Request)
Glazing Glass/Polycarbonate Composite | Glass-clad Polycarbonate | Multi-ply Polycarbonate | Acrylic Polycarbonate Composite
Hardware Included Clear Anodized Aluminum Continuous Gear Hinge | Prepped for Cylinder, Mortise Lockset, or Exit Device
Operation Swing
Primary Material Unfinished Wood Veneer
